SpringBean的生命周期

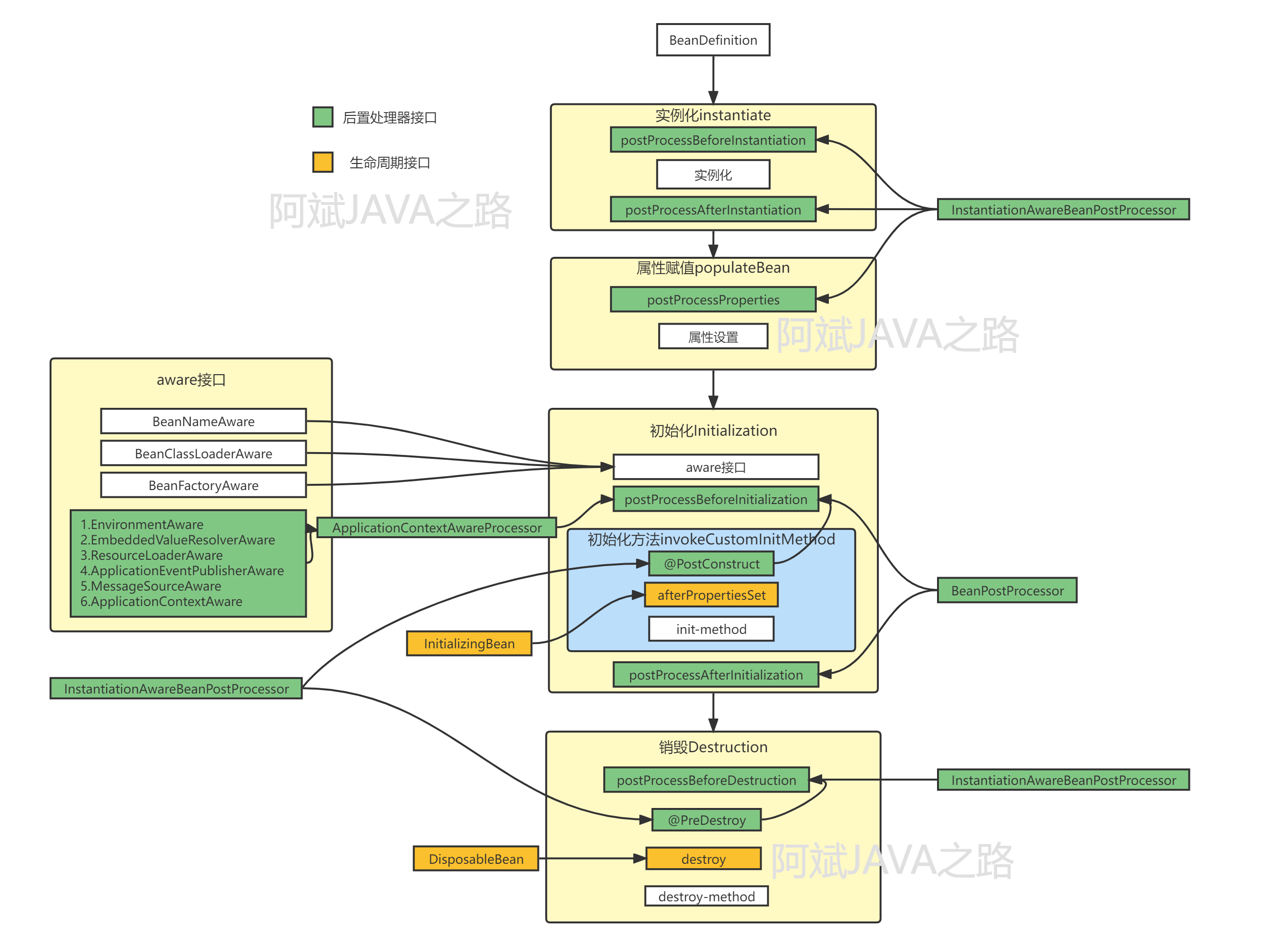

Bean的生命周期

• Bean的初始化流程：实例化->赋值->初始化（各种postProcessor）
• 实例化之前和之后调用InstantiationAwareBeanPostProcessor接口的postProcessBeforeInstantiation和postProcessAfterInstantiation方法
• 属性赋值之前调用InstantiationAwareBeanPostProcessor接口的postProcessProperties方法
• 属性赋值完成之后进入初始化方法阶段，首先调用Aware的接口来设置相关属性：BeanNameAware/BeanClassLoaderAware/BeanFactoryAware方法
• 然后根据Bean实现的BeanPostProcessor接口顺序调用postProcessBeforeInitialization方法
• 然后开始自身真正的初始化init方法
  • 首先调用InitializingBean的afterPropertiesSet方法
  • 然后调用init-method方法
• 然后再根据Bean实现的BeanPostProcessor接口顺序调用postProcessAfterInitialization方法
• 这样类就初始化完成，可以使用了
• 后面就是类的销毁方法还有一些接口可以实现，如果实现了就需要调用

finishBeanFactoryInitialization方法源码解析

• $finishBeanFactoryInitialization$最终初始化Bean的代码

@Override
    public void preInstantiateSingletons() throws BeansException {
        if (logger.isTraceEnabled()) {
            logger.trace("Pre-instantiating singletons in " + this);
        }

        // Iterate over a copy to allow for init methods which in turn register new bean definitions.
        // While this may not be part of the regular factory bootstrap, it does otherwise work fine.
        List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);

        //以下的for循环就是初始化Bean的代码，其中只有getBean（）方法我们需要了解
        for (String beanName : beanNames) {
            RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
            // 判断是否单例，是否懒加载
            if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
                // 如果是工厂类
                if (isFactoryBean(beanName)) {
                    Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
                    if (bean instanceof FactoryBean) {
                        final FactoryBean<?> factory = (FactoryBean<?>) bean;
                        boolean isEagerInit;
                        if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
                            isEagerInit = AccessController.doPrivileged((PrivilegedAction<Boolean>)
                                            ((SmartFactoryBean<?>) factory)::isEagerInit,
                                    getAccessControlContext());
                        }
                        else {
                            isEagerInit = (factory instanceof SmartFactoryBean &&
                                    ((SmartFactoryBean<?>) factory).isEagerInit());
                        }
                        if (isEagerInit) {
                            getBean(beanName);
                        }
                    }
                }
                else {
                    // 普通类直接走下面的方法
                    getBean(beanName);
                }
            }
        }

        // 截至这里除了懒加载的Bean,所有单例的Bean都初始化完成，下面是如果Bean实现了SmartInitializingSingleton接口就调用方法，由开发者自定义
        // Trigger post-initialization callback for all applicable beans...
        for (String beanName : beanNames) {
            Object singletonInstance = getSingleton(beanName);
            if (singletonInstance instanceof SmartInitializingSingleton) {
                final SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
                if (System.getSecurityManager() != null) {
                    AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
                        smartSingleton.afterSingletonsInstantiated();
                        return null;
                    }, getAccessControlContext());
                }
                else {
                    smartSingleton.afterSingletonsInstantiated();
                }
            }
        }
    }
protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType,
            @Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {

        final String beanName = transformedBeanName(name);
        Object bean;

        // Eagerly check singleton cache for manually registered singletons.
        Object sharedInstance = getSingleton(beanName);
        // 如果已经创建了，那么直接返回
        if (sharedInstance != null && args == null) {
            bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
        }
        else {
            // Fail if we're already creating this bean instance:
            // We're assumably within a circular reference.
            // 此处判断Bean是否已经创建过了，如果创建过了，那么就是产生了循环依赖，报错
            if (isPrototypeCurrentlyInCreation(beanName)) {
                throw new BeanCurrentlyInCreationException(beanName);
            }
            try {
                final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
                checkMergedBeanDefinition(mbd, beanName, args);

                // Guarantee initialization of beans that the current bean depends on.
                // 判断此类的初始化是否依赖其他类
                String[] dependsOn = mbd.getDependsOn();
                if (dependsOn != null) {
                    for (String dep : dependsOn) {
                        if (isDependent(beanName, dep)) {
                            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                    "Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
                        }
                        registerDependentBean(dep, beanName);
                        try {
                            getBean(dep);
                        }
                        catch (NoSuchBeanDefinitionException ex) {
                            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                    "'" + beanName + "' depends on missing bean '" + dep + "'", ex);
                        }
                    }
                }
                // 初始化Bean，主要看createBean方法
                // Create bean instance.
                if (mbd.isSingleton()) {
                    sharedInstance = getSingleton(beanName, () -> {
                        try {
                            return createBean(beanName, mbd, args);
                        }
                        catch (BeansException ex) {
                            // Explicitly remove instance from singleton cache: It might have been put there
                            // eagerly by the creation process, to allow for circular reference resolution.
                            // Also remove any beans that received a temporary reference to the bean.
                            destroySingleton(beanName);
                            throw ex;
                        }
                    });
                    bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
                }
            }
            catch (BeansException ex) {
                cleanupAfterBeanCreationFailure(beanName);
                throw ex;
            }
        }
    }
    @Override
    protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
            throws BeanCreationException {

        if (logger.isTraceEnabled()) {
            logger.trace("Creating instance of bean '" + beanName + "'");
        }
        RootBeanDefinition mbdToUse = mbd;

        // Make sure bean class is actually resolved at this point, and
        // clone the bean definition in case of a dynamically resolved Class
        // which cannot be stored in the shared merged bean definition.
        // 确保 BeanDefinition 中的 Class 被加载
        Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
        if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
            mbdToUse = new RootBeanDefinition(mbd);
            mbdToUse.setBeanClass(resolvedClass);
        }

        // Prepare method overrides.
        // 准备方法覆写，这里又涉及到一个概念：MethodOverrides，它来自于 bean 定义中的 <lookup-method />
        // 和 <replaced-method />，如果读者感兴趣，回到 bean 解析的地方看看对这两个标签的解析。
        try {
            mbdToUse.prepareMethodOverrides();
        }
        catch (BeanDefinitionValidationException ex) {
            throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
                    beanName, "Validation of method overrides failed", ex);
        }

        try {
            // Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
            // 让 InstantiationAwareBeanPostProcessor 在这一步有机会返回代理，如果实现了这接口并且返回了Bean,就不走以下步骤了
            Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
            if (bean != null) {
                return bean;
            }
        }
        catch (Throwable ex) {
            throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
                    "BeanPostProcessor before instantiation of bean failed", ex);
        }

        try {
            // 重头戏，创建 bean
            Object beanInstance = doCreateBean(beanName, mbdToUse, args);
            if (logger.isTraceEnabled()) {
                logger.trace("Finished creating instance of bean '" + beanName + "'");
            }
            return beanInstance;
        }
        catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
            // A previously detected exception with proper bean creation context already,
            // or illegal singleton state to be communicated up to DefaultSingletonBeanRegistry.
            throw ex;
        }
        catch (Throwable ex) {
            throw new BeanCreationException(
                    mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
        }
    }
protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
            throws BeanCreationException {

        // Instantiate the bean.
        BeanWrapper instanceWrapper = null;
        if (mbd.isSingleton()) {
            instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
        }
        if (instanceWrapper == null) {
            // 如果进入这里说明不是 FactoryBean，这里实例化 Bean，之后进行赋值，然后初始化
            instanceWrapper = createBeanInstance(beanName, mbd, args);
        }
        Object bean = instanceWrapper.getWrappedInstance();
        Class<?> beanType = instanceWrapper.getWrappedClass();
        if (beanType != NullBean.class) {
            mbd.resolvedTargetType = beanType;
        }

        // Allow post-processors to modify the merged bean definition.
        synchronized (mbd.postProcessingLock) {
            if (!mbd.postProcessed) {
                try {
                    applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
                }
                catch (Throwable ex) {
                    throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                            "Post-processing of merged bean definition failed", ex);
                }
                mbd.postProcessed = true;
            }
        }

        // Eagerly cache singletons to be able to resolve circular references
        // even when triggered by lifecycle interfaces like BeanFactoryAware.
        // 下面这块代码是为了解决循环依赖的问题，这是个重头戏，解决循环依赖问题
        boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
                isSingletonCurrentlyInCreation(beanName));
        if (earlySingletonExposure) {
            if (logger.isTraceEnabled()) {
                logger.trace("Eagerly caching bean '" + beanName +
                        "' to allow for resolving potential circular references");
            }
            addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
        }

        // Initialize the bean instance.
        Object exposedObject = bean;
        try {
            // 这一步也是非常关键的，这一步负责属性装配，因为前面的实例只是实例化了，并没有设值，这里就是设值***************
            populateBean(beanName, mbd, instanceWrapper);
            // 还记得 init-method 吗？还有 InitializingBean 接口？还有 BeanPostProcessor 接口？
            // 这里就是处理 bean 初始化完成后的各种回调**************
            exposedObject = initializeBean(beanName, exposedObject, mbd);
        }
        catch (Throwable ex) {
            if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
                throw (BeanCreationException) ex;
            }
            else {
                throw new BeanCreationException(
                        mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
            }
        }
    // 下面这块代码是为了解决循环依赖的问题，这是个重头戏，解决循环依赖问题
        if (earlySingletonExposure) {
                //循环依赖的核心方法调用
            Object earlySingletonReference = getSingleton(beanName, false);
            if (earlySingletonReference != null) {
                if (exposedObject == bean) {
                    exposedObject = earlySingletonReference;
                }
                else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
                    String[] dependentBeans = getDependentBeans(beanName);
                    Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);
                    for (String dependentBean : dependentBeans) {
                        if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
                            actualDependentBeans.add(dependentBean);
                        }
                    }
                    if (!actualDependentBeans.isEmpty()) {
                        throw new BeanCurrentlyInCreationException(beanName,
                                "Bean with name '" + beanName + "' has been injected into other beans [" +
                                StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
                                "] in its raw version as part of a circular reference, but has eventually been " +
                                "wrapped. This means that said other beans do not use the final version of the " +
                                "bean. This is often the result of over-eager type matching - consider using " +
                                "'getBeanNamesForType' with the 'allowEagerInit' flag turned off, for example.");
                    }
                }
            }
        }

        // Register bean as disposable.
        try {
            registerDisposableBeanIfNecessary(beanName, bean, mbd);
        }
        catch (BeanDefinitionValidationException ex) {
            throw new BeanCreationException(
                    mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
        }

        return exposedObject;
    }

三级缓存解决循环依赖

• 实例化BeanA之后，对属性进行赋值的时候发现赋值的BeanB没有，所以需要初始化BeanB，此时将BeanA放入三级缓存中，然后初始化BeanB发现依赖BeanA,则去缓存中找。先找一级缓存，没有就二级缓存，再没有就三级缓存。在三级缓存中，判断BeanA是否需要代理，如果需要代理则生成代理类放到二级缓存中，并清除三级缓存的工厂类。然后BeanB就初始化完成了，然后发现BeanA还依赖BeanC,而BeanC也依赖BeanA，此时BeanC在初始化的时候在缓存中找BeanA，发现在二级缓存中就找到了，就直接赋值即可。完成初始化后，将BeanB和BeanC放到以及缓存中给BeanA使用，最后如果A需要生成代理类时，判断一下这个类是否是代理类即可，最后完成初始化。
• 如果只有二级缓存，如果A依赖B，那么在初始化B的时候需要找个地方放A，防止后面B可能用到，如果这个地方放完成代理判断之后的A，那么如果后面B没有依赖A，却提前对A进行了代理（如果代理的过程中需要对未初始化的属性有操作就会有风险），这样有风险，如果B确实依赖A，那有风险我也认了。
